Cartesian vs CoreXY 3D Printers: Key Differences

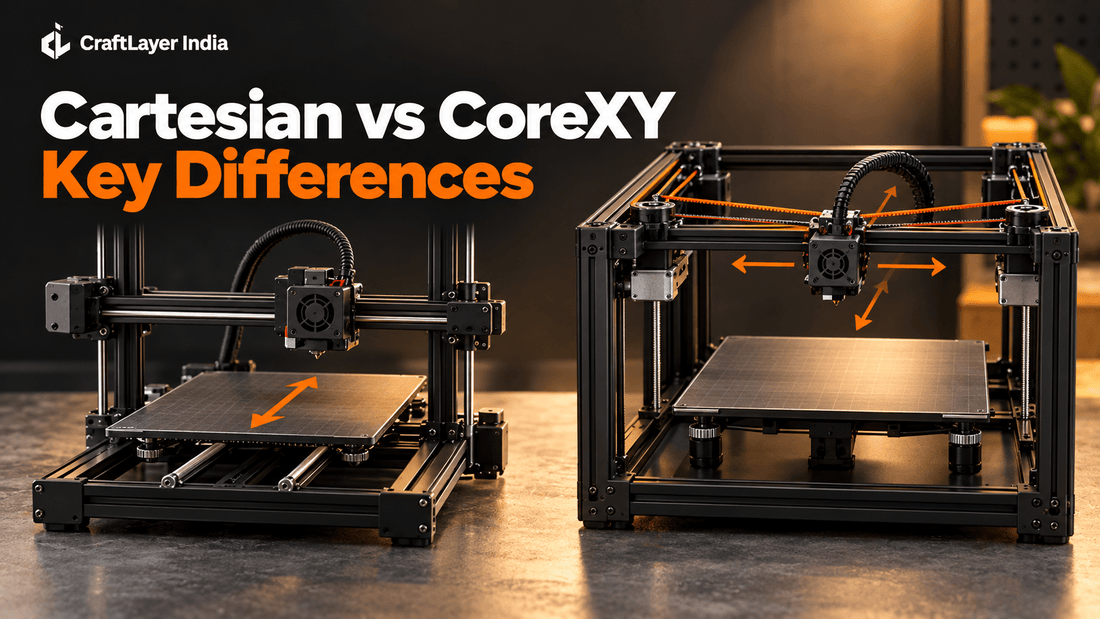

The practical Cartesian vs CoreXY 3D printers comparison is about how the machine moves its printhead and bed. A common Cartesian bed-slinger moves the bed back and forth on one axis; a CoreXY machine uses a paired-belt arrangement to move the head in X and Y, often with the bed moving only vertically. Either can make good prints when well designed and tuned.
Cartesian vs CoreXY 3D printers: what do the names mean?
There is a small naming trap here. CoreXY also positions the toolhead using Cartesian X and Y coordinates. In shopping guides, “Cartesian” usually means a conventional printer with separately driven axes, often a bed-slinger printer, while CoreXY motion system describes a particular coupled belt path.
| Feature | Typical bed-slinger | Typical CoreXY |
|---|---|---|
| X/Y movement | Head on one axis; moving bed on the other | Head moves in both X and Y using paired belts |
| Z movement | Gantry or head rises | Bed often rises or falls |
| Fast motion | Bed and growing print change the moving load | Head assembly can have relatively low moving mass |
| Setup demands | Usually simpler to understand and service | Belt alignment and frame rigidity deserve attention |
These are common layouts, not rules for every printer sold under either label.
In short: CoreXY describes a motion arrangement, not a separate coordinate system or an automatic quality grade.
Is CoreXY always faster?
CoreXY layouts can make high acceleration easier because a growing print is not repeatedly swung back and forth on a bed. Lower moving mass can help with tall prints or with many short travel moves.
But advertised print speed is not the same as useful print speed. Nozzle melt capacity, cooling, filament, and acceptable surface finish can become the real limits. A well-tuned bed-slinger at a sensible speed can beat a poorly tuned faster machine on the result you hold.
What affects accuracy and surface finish?
Motion design influences vibration, but belts, squareness, stable temperatures, and slicer settings still determine much of the final surface. On a tall miniature, bed motion can add a challenge as the piece grows. On a compact vase, that difference may be much less important than layer height and material choice.
The shape also matters. Long straight walls, fine facial features, and interlocking pieces reveal different weaknesses. Compare real test prints made in the material and size you plan to use.
For a broader introduction to printer operation, see How Does a 3D Printer Turn a Model Into a Real Object?. For print quality, you can also read Best 3D Printing Settings for High-Quality 3D Prints.
What about cost and maintenance?
A straightforward Cartesian mechanism is often easier to inspect if a wheel, rail, or single belt needs attention. CoreXY has a more involved belt route; good maintenance includes checking tension and alignment without creating uneven motion.
Printer price is not just the frame. Enclosure, build volume, hotend, material support, and serviceability may change the total cost for a business printing varied products.
For troubleshooting motion-related print problems, How to Fix Layer Shifting in 3D Prints is a useful related guide.
Which layout suits your project?
For a small desk figurine, either layout can work. For tall decorative pieces or repeated production, a stable machine that reduces movement of the growing print may be attractive. For high-heat materials, an appropriate heated and enclosed setup matters more than the CoreXY label alone.
If you are ordering a product rather than a printer, ask for the expected dimensions, surface, material, and turnaround. You do not need to specify the machine architecture unless the job genuinely requires it.
Frequently asked questions
Is CoreXY faster than a bed-slinger?
It can support faster motion, but the final job may be limited by melting, cooling, or the desired finish.
Is CoreXY more accurate?
Not by default. Assembly, calibration, materials, and part design all affect accuracy.
Does the bed move on a CoreXY printer?
Often it moves vertically for Z; it usually does not shuttle back and forth for Y in the common layout.
Is the Bambu Lab A1 a bed-slinger?
Yes. Its bed moves during printing, while its direct-drive toolhead carries the extruder.
Which layout is better for tall statues?
A stable setup that keeps the growing print from excessive shaking can help, but splitting the statue into well-designed parts may matter more.
