Here is how to fix under-extrusion in 3D prints: first identify whether material is missing everywhere, only on the first layer, or mainly at higher speeds. Then check the nozzle, filament path, temperature, and requested flow before adjusting the slicer's flow setting. A print with gaps is a symptom; the location of those gaps is your first clue.
How to fix under-extrusion in 3D prints: spot the symptom

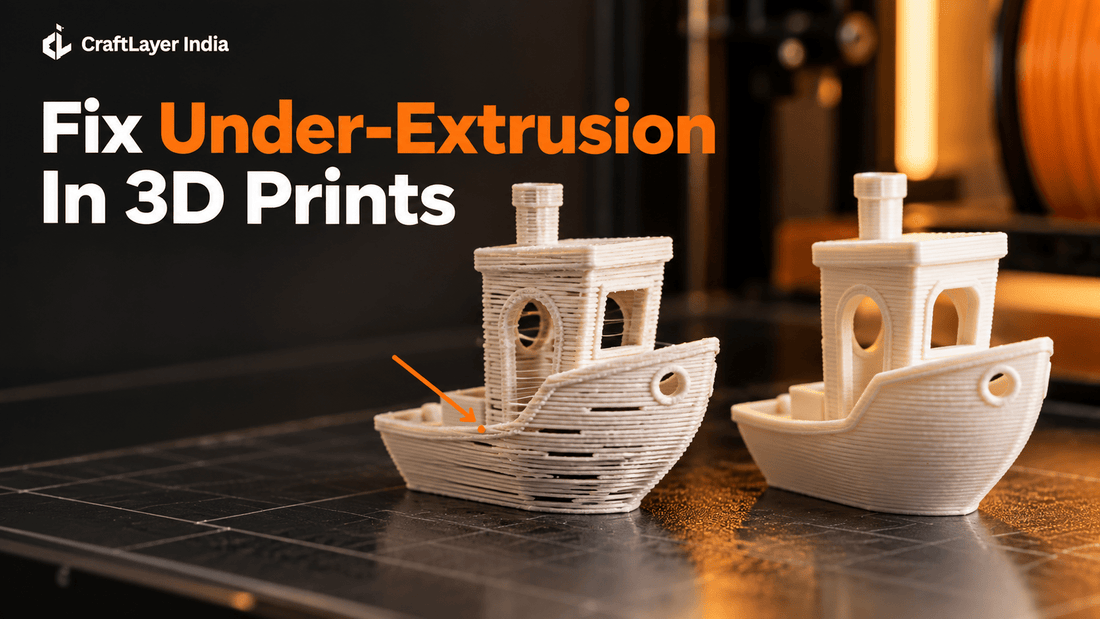

Typical under-extrusion symptoms include thin or broken lines, gaps between adjacent walls, sparse top surfaces, and weak layer bonding. You might also hear extruder clicking as the drive tries and fails to move filament.
Look at the sliced preview first. If the slicer itself leaves a gap around a very thin feature, adding material cannot restore geometry the software never planned to print.
In short: confirm that the model and slicer call for a continuous line before blaming the extruder.
Where does the gap appear?
| Pattern | First check | Why it points there |
|---|---|---|
| Only on the first layer | First-layer gap and bed cleanliness | A nozzle too close can restrict the opening; one too far can leave separated lines. |
| Starts after some time | Spool feed, heat creep, or a partial nozzle clog | The feed path may become restricted during the job. |
| Mainly at high speed | Volumetric flow and temperature | The hotend may not melt plastic at the requested rate. |
| Irregular throughout | Gear grip and filament condition | Intermittent feeding makes intermittent gaps. |
Do not change four settings after one failed print. Pick the row that resembles your result and run a small test.
Check the nozzle and feed path
Unload filament according to the printer's instructions and inspect what the drive gear has gripped. Ground-up plastic, a tangled spool, or incorrect extruder tension can interrupt feed. If the nozzle is partially blocked, follow a proper nozzle-cleaning procedure before another long print.
Check filament diameter in the slicer against the spool specification and make sure the spool turns without snagging. A clean nozzle will not help if the filament cannot reach it consistently.
Check material and temperature
Filament moisture can cause popping, rough lines, and uneven extrusion, especially with moisture-sensitive spools. Dry the material according to its maker's guidance before compensating with an unusually high flow setting.
If the extruder skips only when print speed rises, reduce the requested speed or maximum flow and test again. A modest temperature adjustment within the filament maker's range may help, but temperature alone will not repair a slipping feed gear.
For more on speed-related tuning, see Best Print Speed for PLA.
In short: a stable filament path and a hotend operating within its capacity come before fine flow tuning.
When should you change flow rate?
Change flow only after feed, nozzle, temperature, and filament profile checks pass. Use a small calibration print and change one parameter at a time. A global flow increase can hide a partial clog while leaving detailed sections messy or oversized.
For a decorative statue, inspect narrow hands, ornament edges, and support contact areas after the test. These features often reveal missing material before a broad flat surface does.
If surface quality is also poor, compare the result with our guide to fixing rough surfaces on 3D prints.
Frequently asked questions
Can a clogged nozzle cause under-extrusion?
Yes. A partial blockage can let some material through while leaving thin or interrupted lines.
Why are only my top layers gappy?
Check the slicer's top-layer count, available infill support, and extrusion consistency before raising flow.
Can wet PETG look under-extruded?
It can produce irregular extrusion and rough surfaces. Dry it and re-test before changing several settings.
Should I increase nozzle temperature immediately?
First check whether the symptom is a blockage, feed slip, or excessive speed. Temperature helps only some causes.
Does E-step calibration fix every gap?
No. It cannot correct a clogged nozzle, badly positioned first layer, or a hotend beyond its melt capacity.
A cleaner next print
Wondering how to fix under-extrusion in 3D prints after a failed test? Follow the evidence rather than dialling up flow by habit. If a client piece needs consistent walls and small details, send the model and intended finish to CraftLayer India for a custom 3D printing inquiry in India.
