To fix elephant's foot on a 3D print, first check whether the nozzle is pressing the first layer too hard against the bed, then check whether the base stays excessively soft at your bed temperature. Correct those conditions before using slicer compensation to trim a small remaining bulge. The aim is a base that fits its intended dimensions while still holding securely during printing.
Identify elephant's foot before changing settings

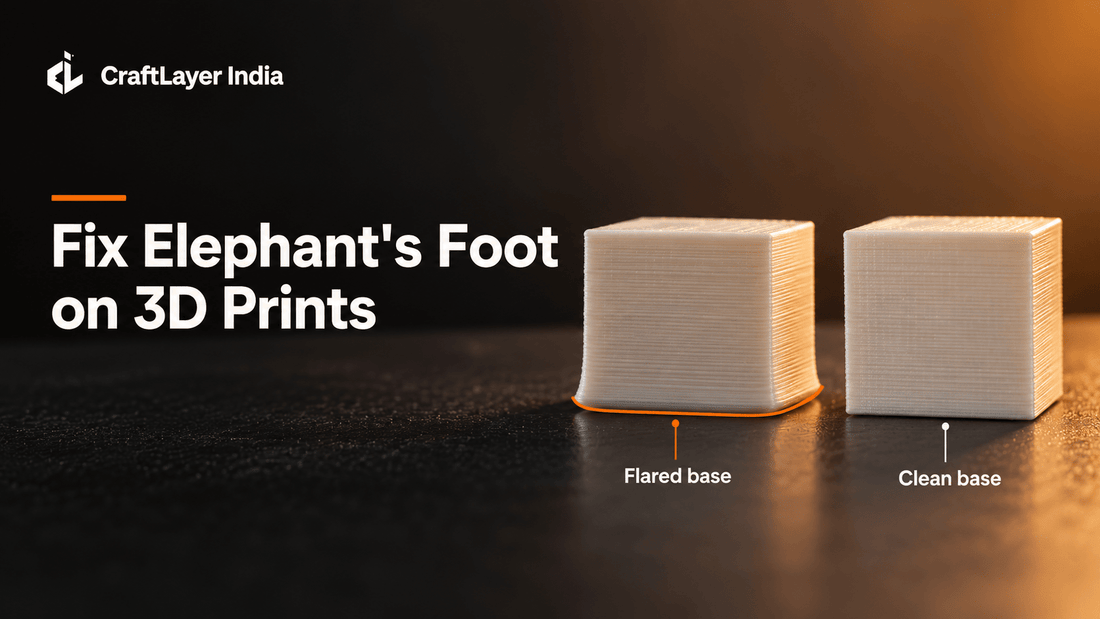

Elephant's foot is an outward flare around the lowest part of a print. A lid can look straight from above yet refuse to enter its matching recess because its bottom edge is wider than the rest.
Measure the base and a straight section several layers above it with callipers after the part cools. If both measurements are oversized, investigate whole-part dimensional accuracy and flow calibration rather than treating everything as a first-layer defect.
| What you see | Likely direction to investigate |
|---|---|
| Flat base with a wider lower rim | Excessive compression or base softening |
| Corners lifting off the bed | Warping and bed adhesion |
| Walls oversized from bottom to top | Flow, model dimensions or dimensional calibration |
| Rough ridges across the first layer | Nozzle gap or excess deposited material |
A lower-edge flare needs a different correction from a lifted corner or an oversized whole model.
Check the first layer and Z offset
Print a small first-layer patch using the material profile you intend to use. Lines should join without tall ridges, torn tracks or a translucent, heavily flattened surface.
If the patch is clearly over-compressed, adjust the Z offset in the direction that increases the nozzle-to-bed gap by a small amount allowed by your printer. Offset signs and automatic calibration behaviour vary, so follow the machine's instructions rather than copying a number from another printer.
Clean and correctly seat the build plate before repeating the test. If only one side is crushed, check bed levelling or the bed mesh before changing a global setting that also affects the good side. Read more in What Is Z Offset and Why Does It Matter?
Aim for joined lines and a consistent gap, not maximum squish.
Review bed temperature without sacrificing adhesion
A bed that keeps the lower plastic too soft can let the base spread under subsequent layers. The right temperature still depends on the filament, plate coating and printer profile; lowering it too far can replace a swollen base with a detached print.
Stay within the filament and build-surface recommendations. If heat appears to be the cause, test a modest reduction, such as 5°C, while keeping the nozzle gap and other settings unchanged.
A profile may use a warmer bed for the first layer and a lower temperature afterwards. Evaluate that option on a small part, particularly if the bulge extends through several lower layers rather than only the first one. See our guide to bed temperature for PLA.
Change bed heat gradually and judge both the lower edge and adhesion.
Use compensation for the remaining base flare
Elephant foot compensation shrinks the first-layer outline in the slicer. It is useful when a sound printing setup still produces a slight base flare, especially on parts that need to slide into another component.
Start with the profile's existing value and make one small adjustment at a time. Check the preview: a correction that helps a broad base may remove too much material from a narrow foot or small feature.
For a model you control, a bottom chamfer can provide extra clearance around the edge. That design change should suit the finished part; it is not a substitute for correcting an obviously crushed layer.
Compensation adjusts geometry, while calibration addresses how the plastic is deposited. If you suspect excess material, use our guide to calibrating flow rate for better print quality.
Confirm the fix with a fitting test
Use a short test piece containing the same lower edge, recess or locating feature as the real model. A generic cube may miss the exact clearance problem that affects a miniature's base or a décor assembly.
- Save the original profile and record the cooled base measurement.
- Correct the nozzle gap if the layer is visibly over-compressed.
- Test bed heat separately if several lower layers spread.
- Apply a small geometric correction only if needed.
- Reprint, cool and test the fit before starting the full object.
Keep the same filament and plate for this comparison. A successful correction should improve the base dimension without leaving gaps or weakening its attachment during printing.
Frequently asked questions
What causes elephant's foot in 3D printing?
Common causes include an overly compressed lower layer and a base that stays too soft on the heated bed. Excess flow can also make the problem worse, so inspect the layer rather than assuming temperature is always responsible.
Can elephant foot compensation fix a bad first layer?
It can reduce the outline, but it cannot restore correct deposition to a badly crushed or uneven layer. Set the nozzle gap and flow correctly first.
Does a brim prevent elephant's foot?
A brim adds contact area around the model to help adhesion. It does not directly correct an oversized bottom edge, although it may help a part stay attached while you test a less compressed layer. Learn more in What Is a Brim in 3D Printing?
Should I lower the bed temperature?
Only if the current heat contributes to base softening and the material still adheres reliably at the lower setting. Use the recommended range and a small test rather than making a large temperature drop.
Can I remove elephant's foot after printing?
Careful trimming or sanding can remove a small accessible flare. For tight-fitting parts or visible finished edges, correcting the print setup is usually more repeatable than removing material by hand.
Get a base that fits the finished product
Fixing elephant's foot means balancing a clean lower edge with reliable attachment to the bed. Check the actual layer, measure the cooled part and use compensation only where it solves a remaining fit problem.
